Product Line-up

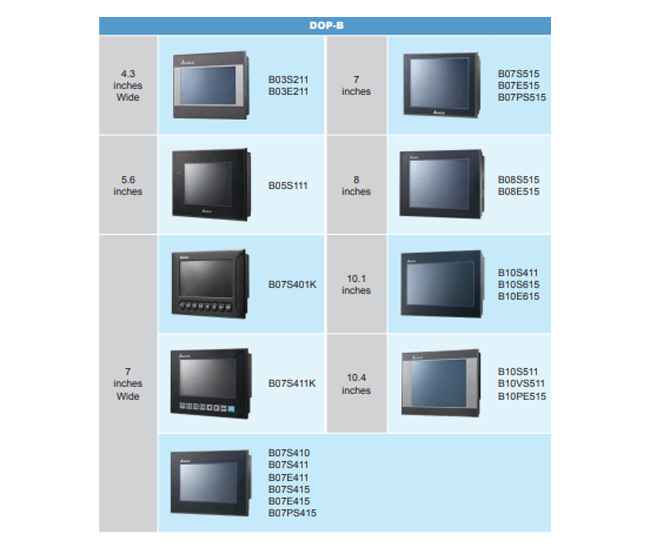

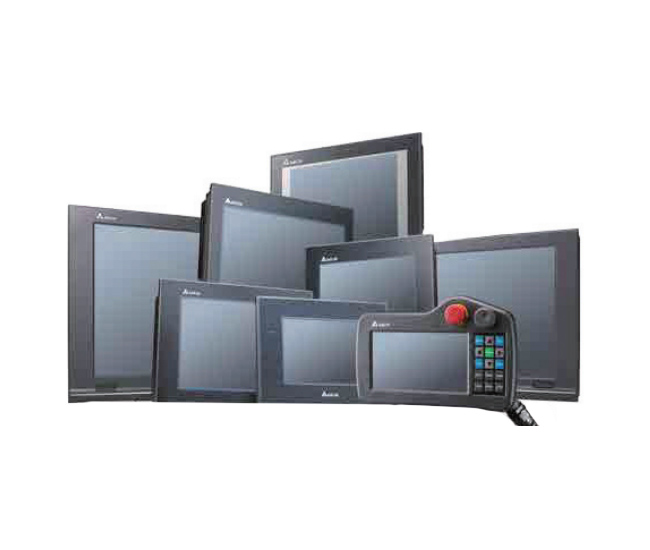

DOP-B Series

The DOP-B series provides various types and different sizes of touch panel HMIs with multiple dimensions and colors, and also offers fast and convenient control functions to meet the diverse application requirements demanded of industrial automation machines.

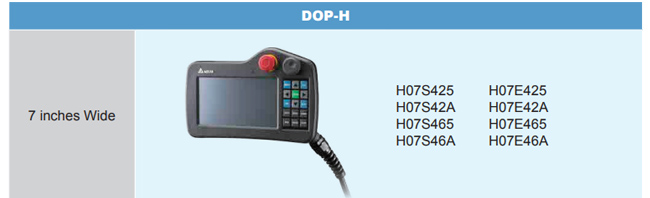

DOP-H Series

The DOP-H series provides handheld type HMIs and customized teaching pendants for controlling and programming the motion of robot arms and other motion control systems.

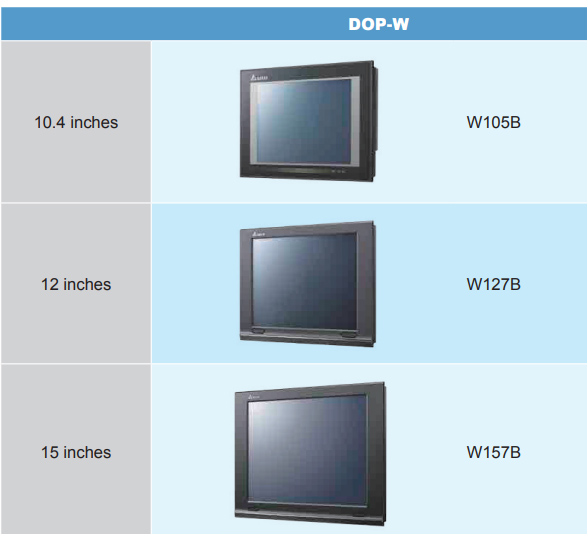

DOP-W Series

The DOP-W series offers large-size HMIs that come with high resolution and high brightness touch screens, and should be your first choice to meet customer needs for a wide range of high-end industrial automation applications.

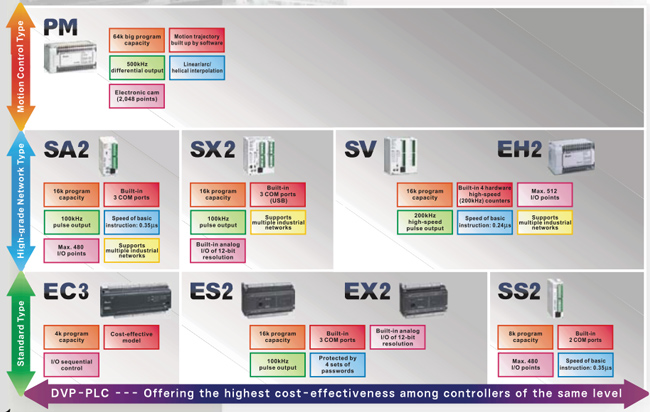

PLC

Delta's DVP series programmable logic controllers offer high-speed, stable and highly reliable applications in all kinds of industrial automation machines. In addition to fast logic operation, bountiful instructions and multiple function cards, the cost-effective DVP-PLC also supports various communication protocols, connecting Delta's AC motor drive, servo, human machine interface and temperature controller through the industrial network into a complete "Delta Solution" for all users.

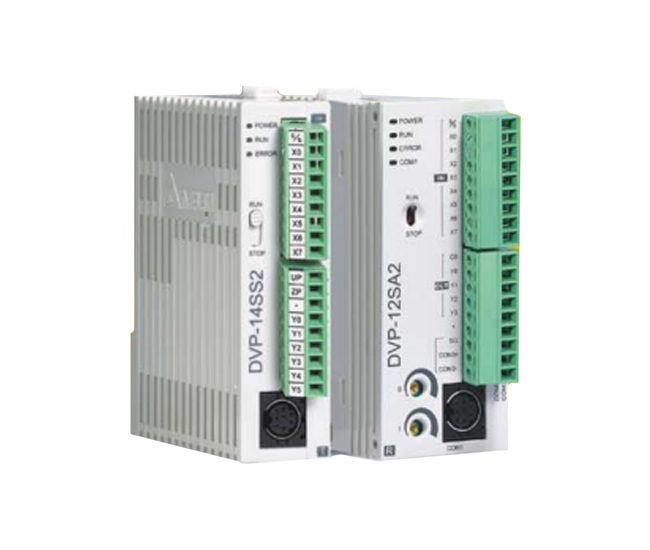

DVP-SS2

  • Suitable for basic applications
  • Compact in size
  • Extendable to 8 right-side modules

Specification & Performance

  • MPU points: 14 (8DI + 6DO)
  • Max. I/O points: 494(14 + 480)
  • Program capacity: 8k steps
  • COM port: Built-in RS-232 & RS- 484 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.

High-Speed Pulse Output

  • Supports 4 points (Y0 ~ Y3) of independent high-speed (max/ 10kHz) pulse output

Suppots PID Auto-tuning

  • DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.

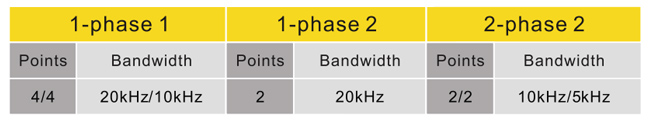

Built-in High-Speed Counters

DVP-SA2

  • Large program capacity to enhance operation efficiency
  • Extendable to 8 right-side modules
  • Extendable to left-side high-speed interfaces
  • Supports PLC-Link (max. speed: 921kbps)

Specification & Peformance

  • MPU points: 12(8DI + 4DO)
  • Max. I/O points: 492(12 + 480)
  • Program capacity: 16k steps
  • COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.

High-Speed Pulse Output

  • Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

Extendable to Max. 8 Modules

  • DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/ DeviceNet communication modules and single-axis motion control functions.

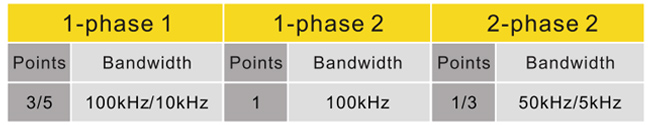

Built-in High-Speed Counters

DVP-SX2

  • Built-in 4 channels of analog input & 2 channels of analog output
  • Extendable to 8 right-side modules
  • Extendable to left-side high-speed interfaces
  • Supports PLC-Link (max. speed: 921kbps)

Specification & Performance

  • MPU points: 20 (8DI/6DO, 4AI/2AO)
  • Max. I/O points: 494 (14 + 480)
  • Program capacity: 16k steps
  • COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.

High-Speed Pulse Output

  • Supports 2 points (Y0, Y2) of 100kHz and 2 points (T1, Y3) of 10kHz independent high-speed pulse output.

Built-in High-Speed Counters

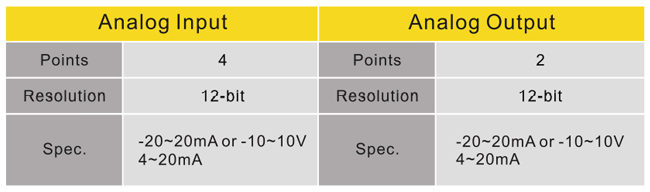

Built-in Analog I/O

DVP-SV

  • Outstanding operation efficiency
  • Large capacity for programming
  • Extendable to left-side high-speed interfaces
  • Supports linear/arc interpolation

Specification & Performance

  • MPU points: 28(16DI/12DO)
  • Max. I/O points: 512
  • Program capacity: 16k steps
  • Instruction execution speed: 0.24 us(basic instruction)
  • COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol
  • Data register: 10k words
  • File register: 10k words

High-Speed Pulse Output

  • Supports 2 groups (Y0, Y1) (Y2, Y3) of A/B phase pulse output (max. 200kHz).
  • Supports 2 points (Y4, Y6) of high-speed (max. 200kHz) pulse output.

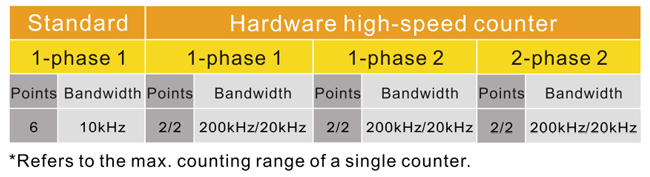

Built-in 4 Hardware High-Speed Counters
