AC Servo Drive

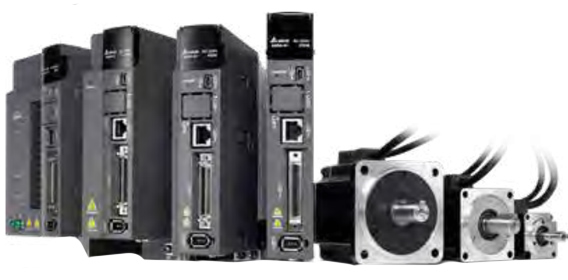

ASDA-A3
24-bit Absolute Encoder
3.1 kHz Bandwidth
Advanced Motion Control Functions

kHz Bandwidth and Shorter Synchronization Cycle

  • Response bandwidth increased by 3.1 times (compared to the ASDA-A2 Series), providing higher speed for commands
  • Higher responsiveness and shorter settling time increases productivity
  • The synchronization cycle of the ASDA-A3 Series is 125 μs, which is 8 times faster than that of the ASDA-A2 Series

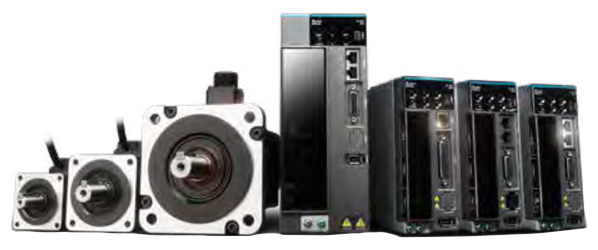

ASDA-B3

24-bit Absolute Encoder
3.1 kHz Bandwidth
Advanced Motion Control Functions

High Response Bandwidth and Shorter Synchronization Cycle

  • Higher responsiveness: from 0.5kHz of the ASDA-B2 Series to 3.1kHz of the ASDA-B3 Series
  • Increased productivity: settling time decreased by 40%
  • The synchronization cycle of the ASDA-B3 Series is 125μs, which is 8 times faster than that of the ASDA-A2 Series

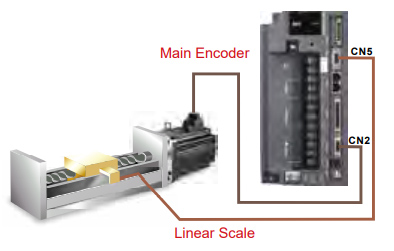

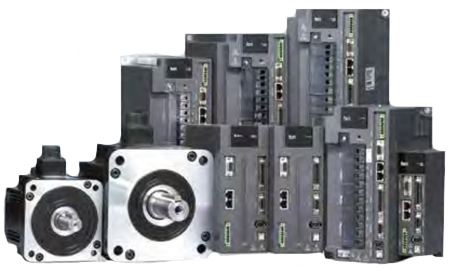

ASDA-A2

Implements 20-bit (1,280,000 p/rev) superior resolution encoder as a standard
Built-in motion control functions

Built-in Motion Control Functions

  • Electronic Cam (E-CAM) function for mark tracing, positioning, synchronous control and more applications; max. 720 points for E-CAM outline
  • High-speed Capture and Compare function for position latching and detection; max. 800 records stored in the memory

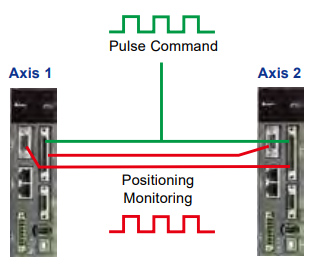

  • Built-in gantry control algorithm

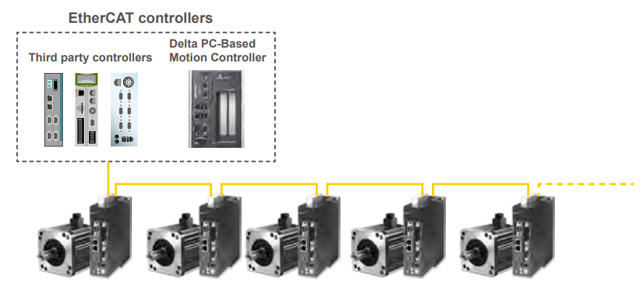

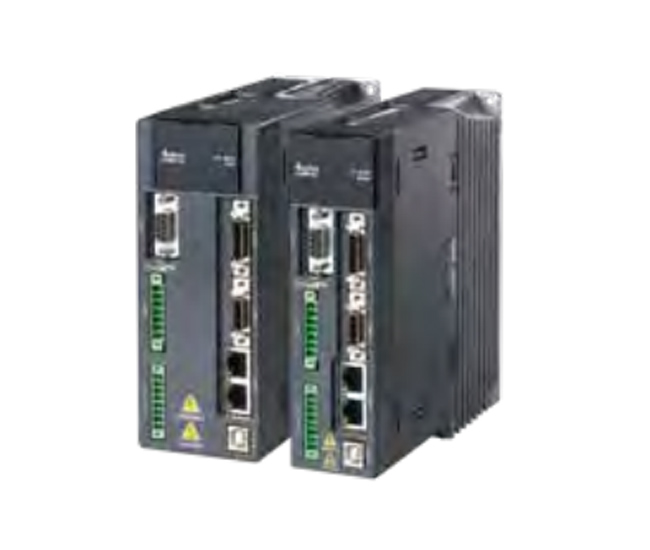

ASDA-A2-E

Supports EtherCAT High-Speed Communication

Delta's ASDA-A2-E Series supports EtherCAT communication, and complies with IEC61158 and IEC61800-7 to enable fast, real-time and precise performance in high-end applications. It also supports a CoE device profile based on CiA402, and all command types of EtherCAT.

In addition to the EtherCAT communication function, the ASDA-A2-E Series features:

  • Wide power range: 400V 400W~7.5kW, 220V 100W~3kW
  • Integrated Safe Torque Off (STO), compliant with IEC61508, SIL2; IEC62061, SILCL2; ISO13849-1, Cat. 3 PL=d
  • Short cycle time, ideal for high-speed synchronous multi-axis control
  • Touch Probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or an external encoder
  • Supports absolute and incremental ECMA Series motors

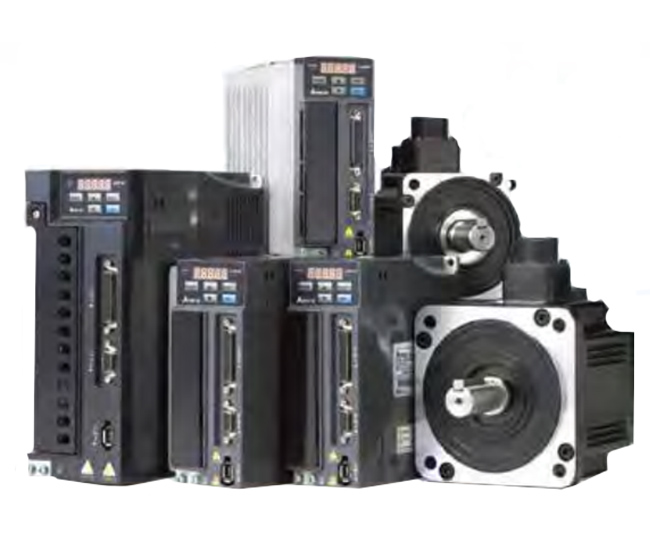

ASDA-B2

Implements 17-bit (160,000 p/rev) high resolution encoder as a standard

Power Range: 0.1kW~3kW

  • Input voltage: 200VAC ~230VAC, 1-phase/3-phase, or 3-phase

Fulfills high precision positioning control requirements of general applications:

  • Built-in Position, Speed and Torque modes (Speed and Torque modes can be controlled via internal parameters or external voltage)
  • Command sources: pulse input (up to 4 Mpps) and analog voltage
  • Three notch filters optimize the operation of the mechanical system automatically
  • Friction compensation and motor protection functions are available to reinforce the system
  • Separated power supply for main circuit and control circuit, easy to maintain
  • Built-in regenerative resistor featured as standard (400 W and above models), saving wiring and costs

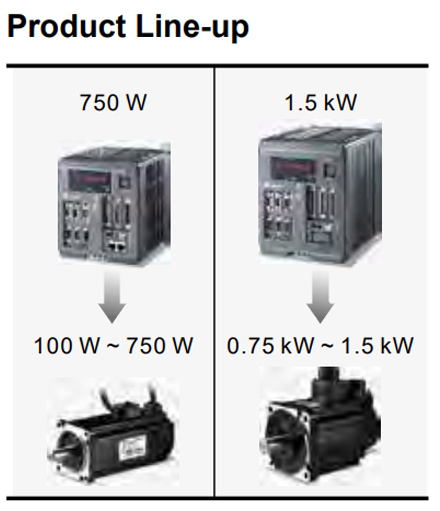

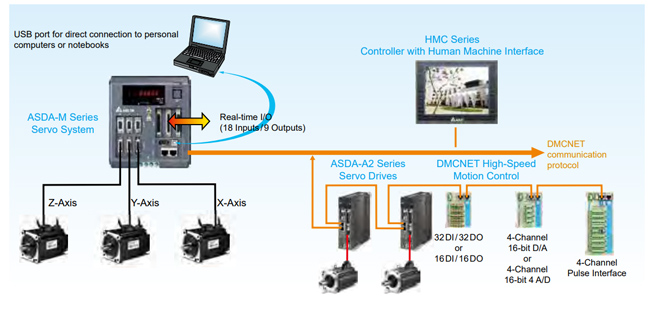

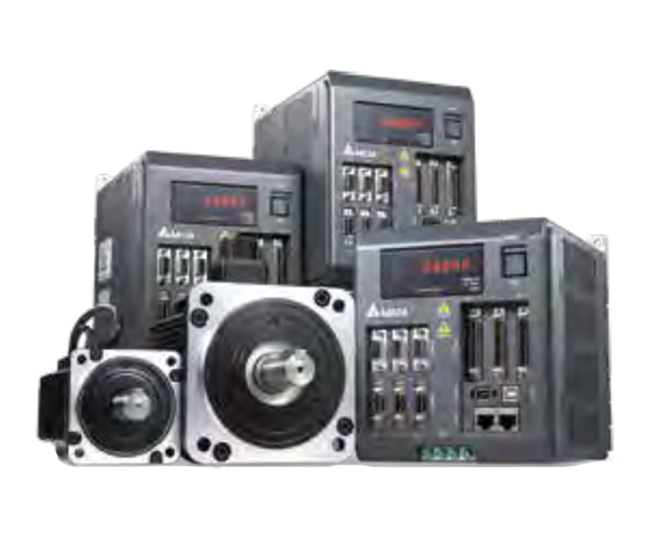

ASDA-M

Three-in-One Intelligent Servo System Harmonizing Motion Controller and Servo Drive

Impeccable Motion Control

  • 3-axis synchronous servo module with higher performance
  • Built-in motion control and PLC functions
  • Multi-axis synchronous interpolation and built-in motion control commands, ideal for applications that require high synchronous control accuracy
  • Advanced synchronous gantry control
  • Versatile PR mode for various continuous motion movements

New PC Software Functions

  • ASDA-Soft provides built-in contour analysis function
  • EzASD provides PLC programming and motion commands editing environment

High Precision, High Performance Servo Motors

  • Supports incremental and absolute encoders
  • Incremental encoder provides up to 1,280,000 p/rev resolution for high-precision positioning
