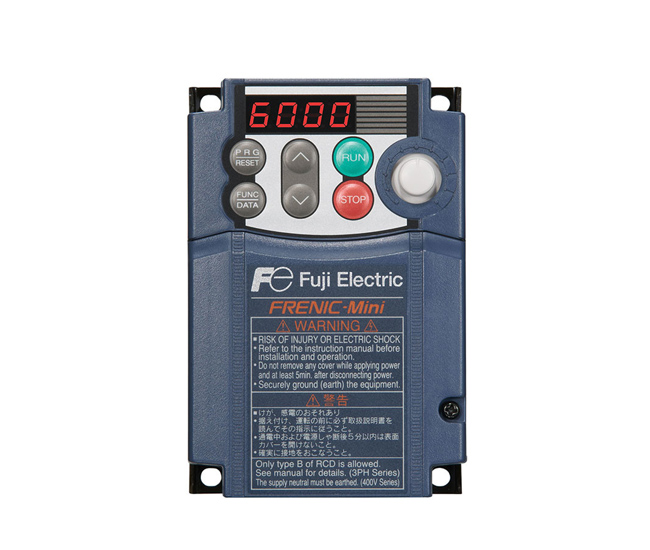

FRENIC-Mini
Main functions and features
High Performance and Multipurpose

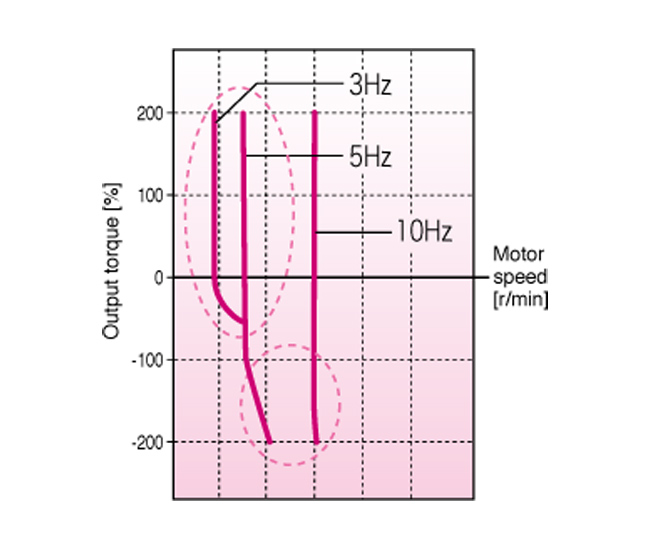

Dynamic Torque Vector Control System
Fuji Electric original dynamic torque vector control system is known for its top-of-the line performance, delivering stabile torque output even at low speeds. This feature has a wide range of applications, including conveyors and high-inertia loads that demand high starting torque.
Slip Compensation shortens setting time
The slip compensation controller works with voltage tuning for even more accurate speed control at low velocity. This reduces speed control variability and stabilizing creep speed for more accurate stopping in conveyors and similar equipment.
Fastest CPU Processor in its Class
Advanced CPU processes data at twice the speed of our current model
Full Compatibility and User Friendly Design

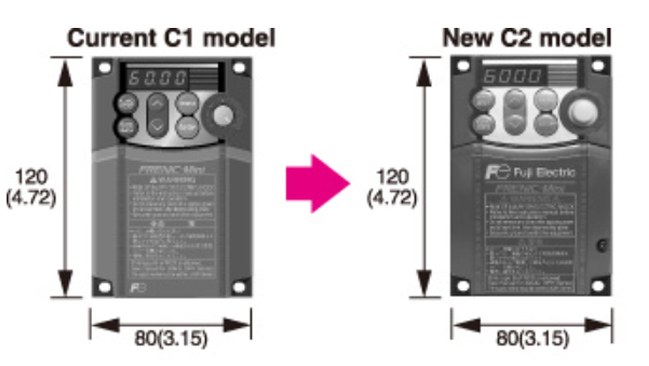

Note: Three-phase 200V 0.1–0.75kW dimensions shown (mm(inch))
| External dimensions | Interchangeable |
| Installed dimensions | Interchangeable |
| Number of terminals | Same for both main circuit and controllers |
| Terminal position | Compatible terminal wire length |
| Function codes | Compatible function codes |
| RS-485 communication | Shared communications protocol |
Easy Operation and Maintenance
Usability
Delivers all the usability of the C1. Provides volume of frequency and the same ease of operation as the current model.
USB Keypad
Optional USB keypad available. Enhanced PC loader connectivity.
·PC loader software available as a free download
·PC loader software available as a free download
Improve Maintainability
| Function | Description |
|---|---|
| Mock malfunction | Select a function to set off a mock alarm |
| Number of startups | Count the total number of ON/OFF run cycles |
| Cumulative motor running time | Monitor motor run time |
| Total power | Set to measure total power consumption |
| Trip history | Saves and displays information on up to four past trips |

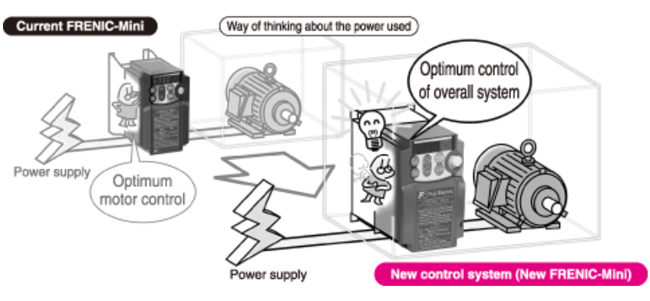

Optimum Energy Control
Motor tuning minimizes power loss
PID Control Function
Permits motor operation while controlling temperature, pressure, and flow rate without the use of a temperature controller or other external device
Cooling Fan ON/OFF Control Function
The cooling fan can be switched off when the fan or pump is not running to reduce both noise and energy consumption
Synchronous Motor Control
Use of sensorless synchronous motor control together with the motor can reduce energy consumption
Network Capabilities

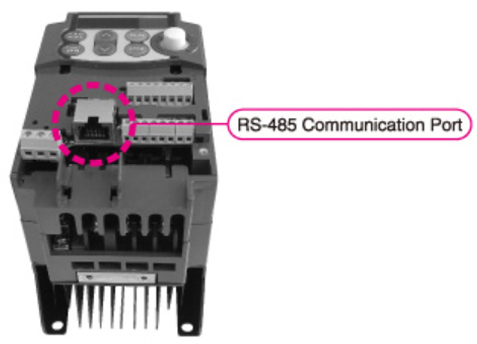

RS-485 Communications Port as Standard
Communications can be controlled through the standard RS-485 communications port using the Modbus-RTU or Fuji Electric inverter protocol
Other Features
Functions for User Applications
V/F (non-linear 3 step) - Two motor parameter sets
Brake signal (brake release signal) Rotational direction control (prevent forward/reverse movement)
Brake signal (brake release signal) Rotational direction control (prevent forward/reverse movement)
Global Standard
EC Directives (CE making)
UL standard (cUL certification)
