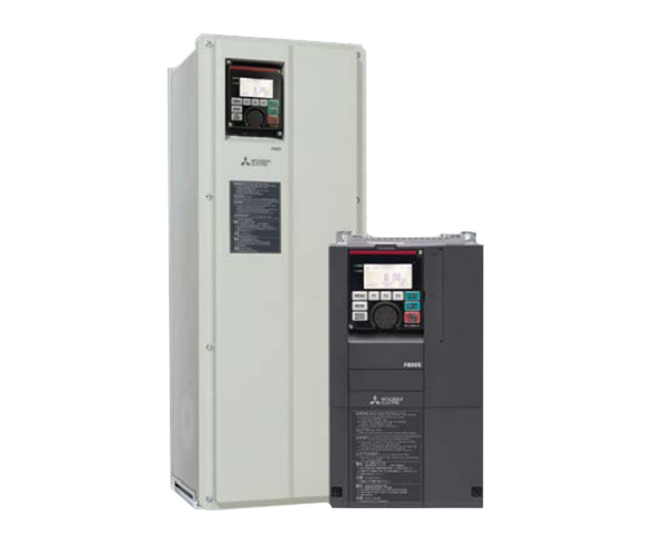

FR-F800
The power saving inverter
The frequency inverters in the FR-F800 range have been especially designed for pump and fan applications as well as heating, ventilation and air-conditioning installations (HVAC). Besides their protection rating IP00/IP20, the
outstanding features of these powersaving frequency inverters include their simple but safe operation and start-up, perfect control management and optional network-capability. The FR-F846 frequency inverter with a protective structure of IP55 is suitable for use under harsh environmental conditions.
Built-in functions, such as the pre-charge function or the PLC functionality, help to
reduce the costs and the complexity of many applications, because additional components are eliminated.
Effective energy savings
Pumps and fans are particularly good targets for great reductions in energy consumption. Energy costs can be slashed by up to 60 %, notably in the lower speed or light load range of such applications.
Additional energy savings are realized by the cutting-edge "Advanced Optimum
Excitation Control (AOEC) algorithm" developed by Mitsubishi Electric. It supplies the motor with the optimum magnetic flux at any given time, thereby reducing losses. The result is maximum motor performance teamed with supreme efficiency.
User-friendly operation
The built-in "digital dial" permits the efficient input of all the necessary drive parameters, cutting down on both programming and start-up time.
Long service life
The FR-F800 can lay claim to a 10-year service life thanks to advanced capacitors and ventilators. These features, along with its simple maintenance and automatic warning signals, make the FR-F800 one of the most reliable inverters on the market.
