FR-C80
The Micro Inverter
Environment consciousness in global standard
Compliant with the EU RoHS directive
Being RoHS compliant, the inverter is friendly to people and the environment.
EMC directive compliant noise filter
EMC compliant to EN61800-3 2nd environment, when an optional EMC filter is connected.
Compatibility with various standards
The inverters are compatible with UL, cUL, EAC, EC directives (CE marking).
Easy connection with GOT
When the automatic connection is enabled, the inverter can communicate with the GOT2000 series simply by connecting the GOT.
Reduced wiring check time
The wiring can be checked easily by lifting the control terminal cover, which makes maintenance easier.
Easy wiring to the control circuit
Spring clamp terminals provide high reliability and easy wiring.
Protected in hazardous environments
The circuit board coating conforms to IEC 60721-3-3 3C2/3S2 for improved environmental resistance.

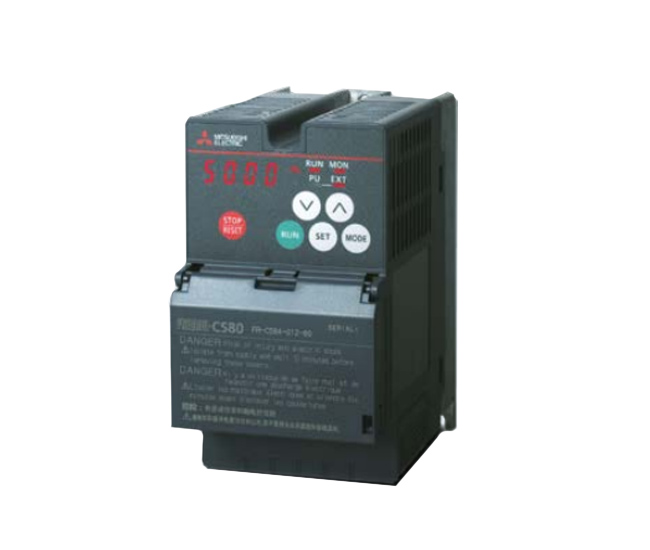

The FR-CS80 series of inverters sets new standards for the micro range of inverters. If you are looking for advanced motor control and space is a concern then the FR-CS80 is the inverter for you.
The FR-CS80 is the most compact inverter in our portfolio and with the ability to mount these inverters without the standard air gap, considerably space can be saved in your control system.

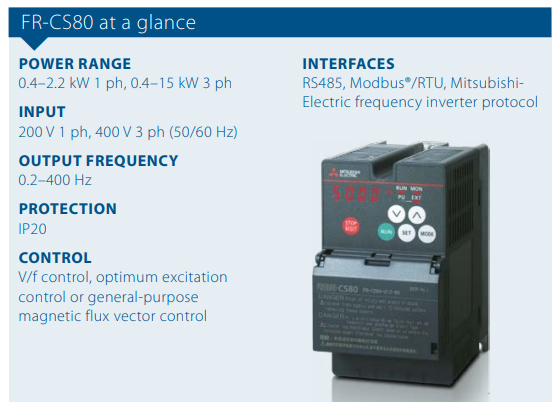

But do not let its compact size fool you. The FR-CS80 supports general-purpose magnetic flux vector control, allowing you to control demanding applications as well as supporting the Mitsubishi Electric Optimum excitation control allowing you to realise substantial energy saving.
With the addition of spring clamp terminal
